Blackmagic Disk Speed Test Windows

by

1 BlackMagic Disk Speed Test. This is one of the best apps that you can use to perform a hard drive speed test on Mac. The features of the hard drive speed tester are: It has only one window. Requires a few simple settings. Compatible with OS X 10.10 Yosemite. It shows write/read speeds in MB/second. Luckily, Blackmagic’s Disk Speed Test is part of a bigger software suite called Desktop Video, and that package is both free and PC compatible. Here are the steps you need to install it. Head over to the Blackmagic support page for capture and playback devices here. This is black-magic Disk Speed Test V 3.2 Applicationfor Windows (Media Fire):-http://www.mediafire.com/file/18sr8yxenrexi14/DiskSpeedTest3.2.zip/filefor.

  1. Disk Speed Test is designed by Blackmageic Design, which is one of the world's leading innovators and manufacturers of creative video technology. Disk Speed Test is included in Blackmagic Desktop Video software. There are Mac, Windows and Linux versions for deferent operating systems.

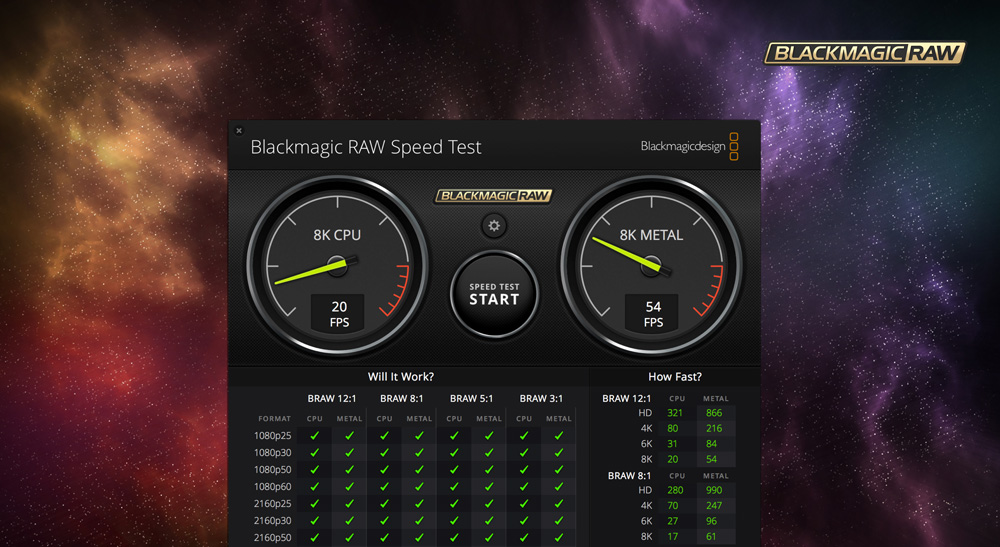

  2. Thanks for your prompt reply. Eventually tripped over the 'Blackmagic raw speed test' by clicking the Windows start button, then the sub-item 'Black Magic Design' which exposed the disk test as well as other resources.
Test

Many people like shooting videos with a digital camera (DC or DV) or a smart phone. As the video resolution has developing from SD, HD (720p, 1080p) to 4K (2160p), even 8K, the size of a video becomes bigger and bigger.

If you need store and playback 4K videos on a hard drive on your computer, you should make sure the write speed and read speed of the disk are fast enough.

How to know the hard drive is fast or slow? How to know the disk is suitable for recording and playback super high definition videos or not? We are introducing a disk speed test tool: Blackmagic Design Disk Speed Test.

Blackmagic Disk Speed Test Windows

This disk speed test tool is a very useful application which can measure the read and write speed of a hard disk and give out the reference after test. If you have ever wondered whether your storage disk is suitable for recording and playback of a particular video format, you can use Disk Speed Test to find out.

How to use Blackmagic Disk Speed Test

Disk Speed Test is designed by Blackmageic Design, which is one of the world's leading innovators and manufacturers of creative video technology. Disk Speed Test is included in Blackmagic Desktop Video software. There are Mac, Windows and Linux versions for deferent operating systems. When you want to test the disk speed, you can take the following guide.

1. Get started

After you download and install Blackmagic Desktop Video, Disk Speed Test is automatically installed.

Run Disk Speed Test, click the START button, and this tool is starting testing the write speed and read speed of the local hard disk on your computer. Disk Speed Test will write a temporary file on the disk, and the file will be automatically deleted when you close the program. If you click the START button again during the test, the test will stop.

When the test is complete, the results are show up on the interface. On the dashboard, you can see the write speed and read speed of your disk. On the lower panels, you can see which video formats can be supported by your disk.

2. Settings

Click the gear icon above the START button, and there is a popup menu. All the settings are on this menu.

Select Target Drive

If you need test some other drive (another local hard drive, a USB drive or a mobile hard drive), you can click Select target drive to choose the storage drive. You need make sure you have read and write permissions for the target drive before you click the START button.

Blackmagic Disk Speed Test Windows

Save Screenshot

If you want to save your disk speed results, you can click Save Screenshot and choose a directory to save the screenshot.

Stress

On the Stress option you can specify the size of the temporary file (from 1GB to 5GB) that Disk Speed Test will write to the target disk. The bigger the temporary file is, the more accurate the results are. Most people should select the 5GB option for the most technically accurate test.

Disk Speed Test Help

Blackmagic Disk Speed Test Windows 10

Windows

Click Disk Speed Test Help to launch the PDF manual, which is saved on your computer after installation.

Blackmagic Disk Speed Test Para Windows

3. Results

Blackmagic Disk Speed Test Windows 7

After you modify the settings and click the START button to performance the disk speed test. A temporary file is written on the target disk, and the write speed is showing on the left of the dashboard. The writing test will last 8 seconds at most.

When the writing test finishes, Disk Speed Test will start reading the temporary file to perform reading test, and the read speed is showing on the right of the dashboard.

After the test finishes, Disk Speed Test gives out the reference according to the performance of the disk in the Will it Work? and How Fast? (FPS) panels.

Blackmagic disk speed test pc

The Will it Work panel shows common video formats and instantly displays a check mark or cross to show if the disk performance will be adequate for the desired video format. This panel can also help you to identify which video formats your disk can support capturing or playback.

The How Fast (FPS) panel shows the frame rates that your disk can achieve recording or playing back videos in frames per second.

Conclusion and Recommendation

Disk Speed Test is a helpful tool for testing whether your disk is suitable for recording or playback video files. But if you delete a video file by mistake, you may need a data recovery program to retrieve your video. Apeaksoft Data Recovery is such a tool, which is safe and reliable to get your lost files back from storage devices with the file system NTFS, FAT16, FAT32, exFAT, EXT, and more. Besides videos, it also enables you to recover deleted images, documents, emails, audio and more. Whether you want to restore data from recycle bin, hard drive, Windows PC, Mac, flash drive, memory card, or digital camera, mobile phones, it can do you a great favor.

You can get a complete understanding about Disk Speed Test after reading this page. If you still have any puzzle, you can leave us messages in the comment.
